control cable



Application:

Mainly used for indoor installation, but also installed in humid environments This type of cable is used for the transmission and service of communication, data, and voice signals in industrial production processes. It can also be applied to the interconnection between electrical equipment and instruments, and is commonly used in chemical or petrochemical industries

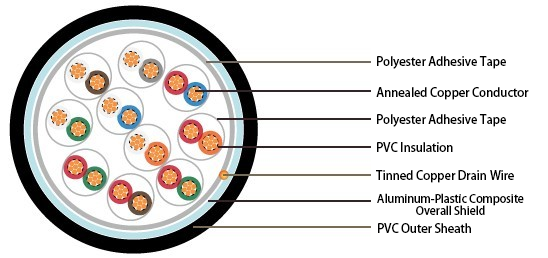

Structure：

conductor Annealed copper or tinned copper, size: in accordance with BS6360 standard, 0.5mm ² and 0.75mm ², Class 5 multi strand, 1.5mm ², Class 2 multi strand copper
Isolation PVC (polyvinyl chloride), complying with BS6746 standard, Class TI1
in pairs Two core twisted pair, with isolation tape less than 100mm added
Line to Color Multi core cable: yellow (with black numerical code) for cables with less than 40 cores, black (with yellow numerical code) for cables with 41-80 cores
  Multiple pairs of cables: refer to the color coding in the notes
Adhesive tape Transparent polymer ester tape
overall shield Aluminum plastic composite shielding, metal facing inward, adjacent to a 0.5mm ² drainage line
Outer sheath PVC (polyvinyl chloride) sheath, in accordance with BS6746 standard, Class TM1 or Class 6
Sheath color Black/Blue



Physical and electrical properties：

Working temperature: -40 ° C -+70 ° C (fixed installation)

0 ° C -+50 ° C (working)

Minimum bending radius: 5 x outer diameter



conductor cross-section   mm 2 0.5 0.75 1.5
Conductor specifications   No. x mm 16 x0.2 24 x 0.2 7 x0.53
Maximum conductor resistance   ohm/km 39.7 26.5 12.3
Minimum Insulation Resistance   Gohm/km 25 25 25
Maximum mutual tolerance:   pF/m 250 250 250
Between or adjacent cores
The maximum capacitance between cores or cores and shielding   pF/m 400 400 400
The maximum inductance/impedance ratio between adjacent cores   μH/ohm 25 25 40
testing voltage Core: Core V 1000 1000 1000
  Core: Shielding V 1000 1000 1000
Maximum rated voltage   V 300/500 300/500 300/500

Parameter Table：



logarithm Number and diameter of conductor strands Nominal cross-sectional area of conductor Nominal insulation thickness Nominal Jacket Thickness
  no./mm mm2 mm mm
2 16/0.2 0.5 0.6 0.8
3 16/0.2 0.5 0.6 0.8
4 16/0.2 0.5 0.6 0.8
6 16/0.2 0.5 0.6 0.9
10 16/0.2 0.5 0.6 1.1
20 16/0.2 0.5 0.6 1.2
40 16/0.2 0.5 0.6 1.3
80 16/0.2 0.5 0.6 1.5
2 24/0.2 0.75 0.6 0.8
3 24/0.2 0.75 0.6 0.8
4 24/0.2 0.75 0.6 0.8
6 24/0.2 0.75 0.6 0.9
10 24/0.2 0.75 0.6 1.1
20 24/0.2 0.75 0.6 1.2
40 24/0.2 0.75 0.6 1.3
80 24/0.2 0.75 0.6 1.5
2 7/0.53 1.5 0.6 0.8
3 7/0.53 1.5 0.6 0.9
4 7/0.53 1.5 0.6 0.9
6 7/0.53 1.5 0.6 1.1
10 7/0.53 1.5 0.6 1.2
20 7/0.53 1.5 0.6 1.3
40 7/0.53 1.5 0.6 1.5
80 7/0.53 1.5 0.6 1.7

Multipair：



logarithm Number and diameter of conductor strands Nominal cross-sectional area of conductor Nominal insulation thickness Nominal Jacket Thickness
  no./mm mm2 mm mm
1 16/0.2 0.5 0.6 0.8
2 16/0.2 0.5 0.6 0.8
5 16/0.2 0.5 0.6 1.1
10 16/0.2 0.5 0.6 1.2
15 16/0.2 0.5 0.6 1.3
20 16/0.2 0.5 0.6 1.3
30 16/0.2 0.5 0.6 1.5
50 16/0.2 0.5 0.6 1.7
1 24/0.2 0.75 0.6 0.8
2 24/0.2 0.75 0.6 0.8
5 24/0.2 0.75 0.6 1.2
10 24/0.2 0.75 0.6 1.3
15 24/0.2 0.75 0.6 1.3
20 24/0.2 0.75 0.6 1.5
30 24/0.2 0.75 0.6 1.7
50 24/0.2 0.75 0.6 2
1 7/0.53 1.5 0.6 0.8
2 7/0.53 1.5 0.6 0.9
5 7/0.53 1.5 0.6 1.2
10 7/0.53 1.5 0.6 1.3
15 7/0.53 1.5 0.6 1.5
20 7/0.53 1.5 0.6 1.5
30 7/0.53 1.5 0.6 1.7
50 7/0.53 1.5 0.6 2
